| 品牌：Merit Sensor | 型号：BP0001 BP0002 | 压力类型：绝压 |
| 工作压力：10-100Mpa | 输出类型：模拟 | 输出电压：3 |
| 精度：0.1% | 系列：BP0001 BP0002 | 电源电压：5V |
| 端口类型：双口 | 工作温度：150℃ | 封装/外壳：直插 |
| 特性：压力传感器 | 最小包装数：10 | 应用领域：测量仪器 |

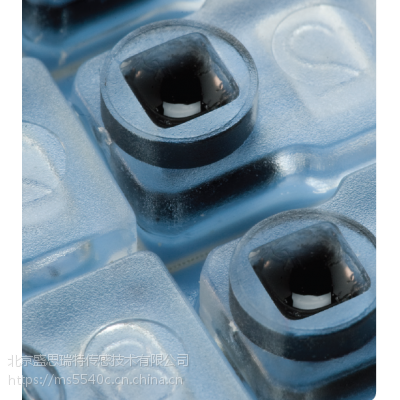

供应Merit Sensor压力传感器一次性血压医疗应用BP0001 BP0002
Merit Sensor传感器血压传感器是低成本，大容量，一次性医疗应用（包括血压监测）的理想选择。 BP系列传感器具有温度补偿，电介质凝胶保护，可轻松安装到客户的压力设备外壳中。
The Merit Sensor Blood Pressure sensor is ideal for low cost, high-volume, disposable medical applications including blood pressure monitoring. The BP Series sensor is temperature compensated, dielectric gel protected and can easily be installed into a customer’s pressure device housing
COMPANY: Merit Sensor is a leader in piezoresistive pressure sensing and partners with clients to create high performing solutions for a variety of applications and industries.Design, engineering and manufacturing of Merit Sensor products takes place in state-of-the-art wafer fabrication
facility in Utah, US.
TECHNOLOGY: Merit Sensor utilizes a piezoresistive Wheatstone bridge with a chemically etched silicon
diaphragm. All products are RoHS compliant.
CAPABILITIES: Merit Sensor designs, engineers, fabricates,dices, assembles, tests and sells and services die and packagedproducts from a state-of-the-art facility near Salt Lake City, Utah.
特征
? Pressure range of -30 to 300 mmHg
? Excellent burst pressure
? Compliant with AAMI BP22 specifications
? Dielectric gel barrier
? Fully tested
? Small, disposable, low-cost package
? Temperature compensated
? Solid state piezoresistive sensor
? Top side pressure entry
? Easy to install into customer’s disposable blood
pressure device housing
? Compatible with automated assembly equipment
? Compatible in air, gas and liquid
? Shipped as 120UP snapstrates or on tape and reel
? Automated testing and assembly
? Custom options available
? Engineering, design, and manufacturing under one roof in Utah, USA.
APPLICATIONS
? Disposable blood pressure measurement
? Kidney dialysis machines
? Infusion pumps
? Surgical procedures
注意
1.除非另有说明，否则假设6 VDC，22°C和5秒钟预热。
2.没有施加压力的传感器输出和一个150KΩ电阻在+ IN到+ OUT之间短路。
3.温度范围为15°C至40°C。
4.归一化偏移/桥电压 - 20秒预热后8小时。
5.以前合格，未经生产测试。
6.灵敏度，可重复性，非线性和滞后误差的综合影响。
7.客户进行灭菌。
注意：
?传感器出厂时为120UP snapstrates，陶瓷板必须由客户单独设计。
?每个板可能包括发生故障的单元电气或视觉测试。 识别出不良单位在设备背面有一个红点。
?印版采用无尘防静电装运容器，以防止损坏凝胶。
