The 7000 Series is ideal for high-volume, medium-pressure applications.

7000系列是高容量，中压应用的理想选择。

COMPANY: Merit Sensor is a leader in piezoresistive

pressure sensing and partners with clients to create high

performing solutions for a variety of applications and industries.

SENTIUM: Merit Sensor products incorporate a proprietary Sentium? technology, developed to provide a

best-in-class operating temperature range (-40°C to 150°C)

and superior stability.

TECHNOLOGY: Merit Sensor utilizes a piezoresistive

Wheatstone bridge in a design that anodically bonds glass

to a chemically etched silicon diaphragm. All products

are RoHS compliant.

CAPABILITIES: Merit Sensor designs, engineers, fabricates,

dices, assembles, and tests products from a state-of-the-art

facility near Salt Lake City, Utah.

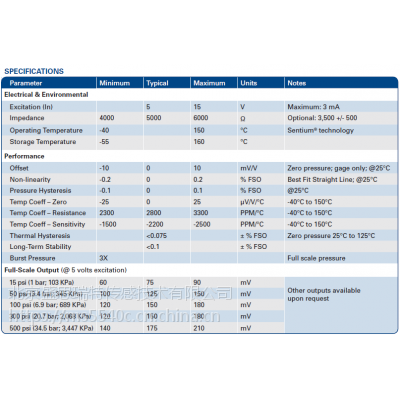

FEATURES

压力范围Range 15 to 500 psi (1 to 34.5 bar; 103 to 3,447 KPa)

Type Absolute, gage, differential and vacuum

Media Clean, dry air and non-corrosive gases

Shipping Wafers on tape, waffle pack

Flexibility Sensitivity, resistance, bridge, constraint, etc.

BENEFITS

Performance Enjoy best-in-class performance due to Merit’s

proprietary Sentium technology.

Cost Save money over time with high-performing die

Security Feel confident doing business with an experienced

company backed by a solid parent company

(NASDAQ: MMSI)

Speed Get to market quickly with creative and flexible solutions.Service Experience prompt, personal, and professional support.

Example: 7SO-0300-9T offers 5kohm Impedance, Open Bridge,100psi and Gage Constraint

Note: “T” in part number = sawn wafer on tape in metal frame

7SO-1000-5T

7SO-0500-5T

7SO-0300-5T

7SO-0100-5T

7SO-0070-5T

7SO-1000-9T

7SO-0500-9T

7SO-0300-9T

7SO-0100-9T

7SO-0070-9T

7SH-1000-5T

7SH-0500-5T

7SH-0300-5T

7SH-0100-5T

7SH-0070-5T

7SH-1000-9T

7SH-0500-9T

7SH-0300-9T

7SH-0100-9T

7SH-0070-9T

7SC-1000-5T

7SC-0500-5T

7SC-0300-5T

7SC-0100-5T

7SC-0070-5T

7SC-1000-9T

7SC-0500-9T

7SC-0300-9T

7SC-0100-9T

7SC-0070-9T

8SO-1000-5T

8SO-0500-5T

8SO-0300-5T

8SO-0100-5T

8SO-0070-5T

8SO-1000-9T

8SO-0500-9T

8SO-0300-9T

8SO-0100-9T

8SO-0070-9T

8SH-1000-5T

8SH-0500-5T

8SH-0300-5T

8SH-0100-5T

8SH-0070-5T

8SH-1000-9T

8SH-0500-9T

8SH-0300-9T

8SH-0100-9T

8SH-0070-9T

8SC-1000-5T

8SC-0500-5T

8SC-0300-5T

8SC-0100-5T

8SC-0070-5T

8SC-1000-9T

8SC-0500-9T

8SC-0300-9T

8SC-0100-9T

8SC-0070-9T

Merit Sensor 公司是压阻式压力传感器领域里的***，产品工作温度范围（-40°C至150°C）和***的稳定性，Merit Sensor采用压阻式技术，惠斯登电桥在阳极上粘合玻璃的设计到化学蚀刻的硅膜片。 惠斯登电桥在阳极上粘合玻璃的设计到化学蚀刻的硅膜片。 所有产品符合RoHS标准，为各种应用领域提供高性能的解决方案。

Merit Sensor 压力传感器适用于某些医疗应用，如充气装置和一次性使用的产品的、低成本的补偿压力组件-15至300磅（-1至20.7巴，-103至2068千帕），在较高的压力下也可在室温下采用雷射微调电阻校准可定制的封装形式，包括陶瓷针脚和烟囱式插针作为压力表和背侧计，反向压力。
